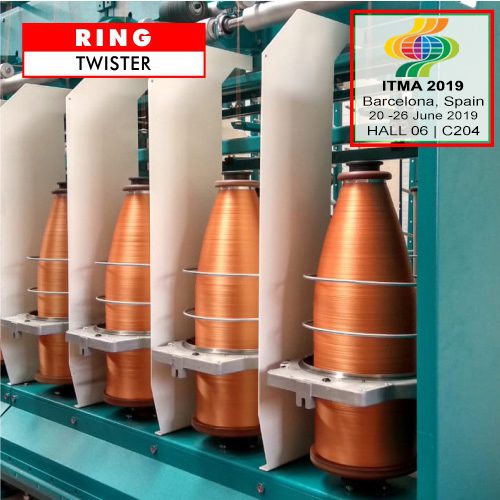

We offer variety of ring twisting machine, ring twister, industrial ring twister, industrial ring twisting machines, textile machine, ring spinning machine, cotton ring spinning machine etc. at an industry competitive price.
| Units | R-140 | R-160 | R-200 | R-250 | R-300 | ||
|---|---|---|---|---|---|---|---|
| NO. OF SPINDLES | - | 8 | 7 | 6 | 5 | 4 | |
| GAUGE | mm | 180 | 215 | 250 | 300 | 375 | |
| RING DIAMETER | mm | 140 | 160 | 200 | 250 | 300 | |
| RING HEIGHT | mm | 16.7 | 16.7 | 25.4 | 25.4 | 38.1 | |
| TWIST RANGE | T.P.M | 10-1000 | |||||
| DELIVERY SPEED | m/min | 140 | |||||
| SPINDLE SPEED IN RPM. | R.P.M | 6000 | 6000 | 5000 | 5000 | 3000 | |
| NO OF PLY-SENSING | - | 4-6 | |||||
| MACHINE DIMENSIONS (LXWXH) | mm | 1600 X 1250 X 2100 | |||||

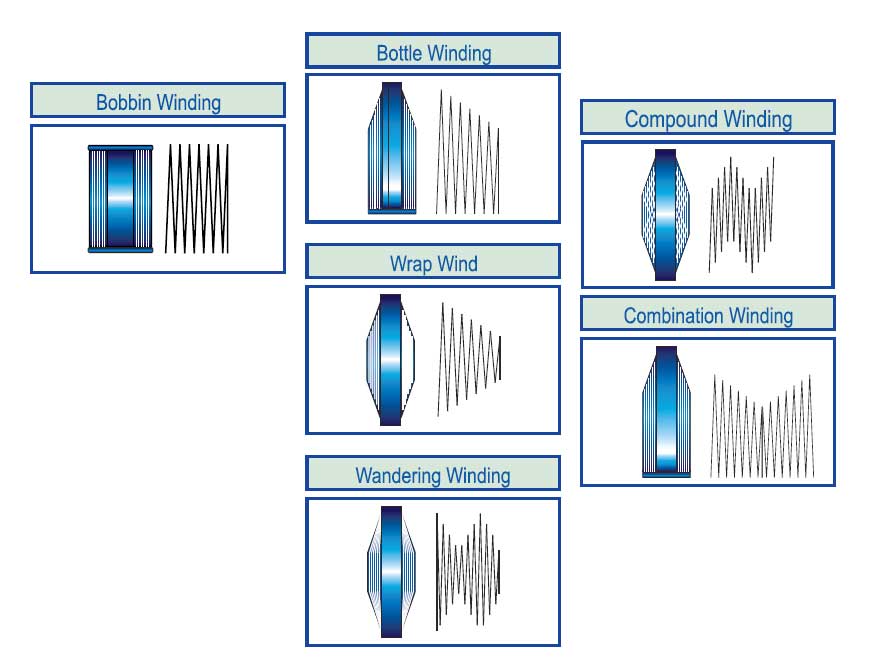

| BOBBIN SHAPE | - | Double flange, bottle, biconical. | ||||
|---|---|---|---|---|---|---|
| MAX. RING HOLDER TRAVERSE (Max.) | mm | 600 | ||||
| MAX. CAPACITY | Liters | 4 | 6 | 11 | 15 | 25 |
| RING HEIGHT IN MM. | mm | 16.7 | 16.7 | 25.4 | 25.4 | 38.1 |
| DENIER RANGE | - | 150 - 5000 | 500 - 10000 | 1000 - 250000 | 1500 - 60,000 | 1500 - 60,000 |
